GetAttachment<>

alert

The GetRelatedEntity<> activity must be included in the workflow before the GetAttachment<> activity, and the GetEntity<> activity must precede the GetRelatedEntity<> activity. Attachments in the tab retrieved from the GetRelatedEntity<> activity are retrieved in the GetAttachment<> activity.

The GetAttachment<> activity retrieves attachments from the Id of the tab that is retrieved in the GetRelatedEntity<> activity.

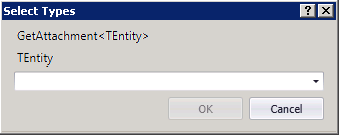

Select Types

When you select the 'Browse for Type' option, the list of assemblies and associated entities is displayed. Find and select the entity and click OK.

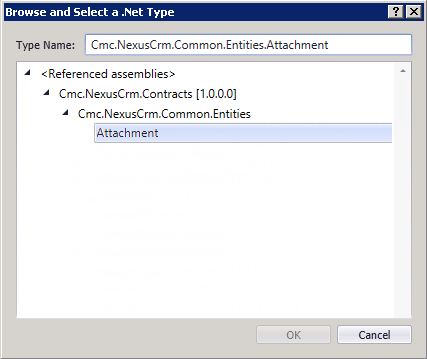

Browse and select a .Net Type

After you have selected an entity, the name of the entity is inserted in the DisplayName field, e.g., GetAttachment <Attachment>. Proceed to specify the entity to be retrieved.

Scenario

To retrieve the attachment in an encrypted format, you are required to create a sequence of three activities:

  • GetEntity<> — this activity retrieves the instance of the object record.

  • GetRelatedEntity<> — this activity retrieves the ID of the tab from which you want to retrieve the attachment.

  • GetAttachment<> — the ID of the tab serves as an input parameter. This activity then retrieves the attachment in an encrypted form.

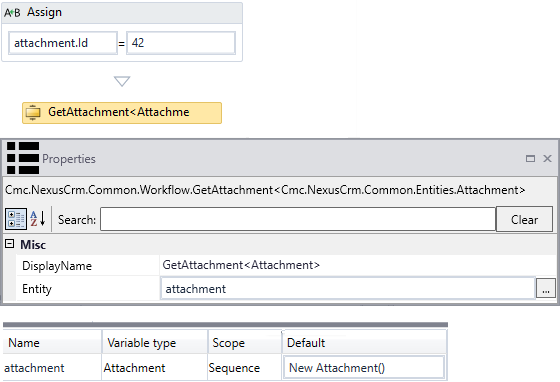

GetAttachment<>

Properties

GetAttachment<> Properties
Property Value Required Notes
DisplayName String No Specify a name for the activity or accept the default.
Entity InOutArgument<Entity> Yes Specify the entity identifier using a VB expression or variable.
