NLog

The default logging provider used by Anthology is NLog. NLog allows you to set up log targets, levels, rules, layouts, etc. through configuration.

Configure Logging

To configure logging, you need to modify the nlog.config file contained within the application’s executing directory. For web applications, this file exists alongside the web.config file.

Note: In Workflow Composer 4.0.2 and later, the nlog.config file no longer exists. The NLog configuration settings have been placed in the app config file (WorkflowComposer.exe.config).

<?xml version="1.0" encoding="utf-8"?> <nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">   <targets>     <target name="file" xsi:type="File"       layout="${longdate} ${threadid:padding=3} ${level:padding=-30} ${logger:padding=-30} ${message} ${exception:format=tostring}"       fileName="${basedir}logs/${shortdate}.txt"       keepFileOpen="true" />     <target name="console" xsi:type="ColoredConsole"       layout="${date:format=HH\:MM\:ss} ${threadid:padding=3} ${logger:padding=-30} ${message}" />   </targets> <rules>   <logger name="*" minLevel="Error" writeTo="file" /> </rules> </nlog>

Above is an example of a config file that is configured with two targets: file and console. The logging rules define which target is executed based on level (Trace, Debug, Information, Warning, Error, and Fatal). The configuration above logs to a subfolder off the base directory whenever an Error or Fatal level is logged by the application. To log verbose diagnostic information, you can change the minLevel to Trace, which will log all levels of diagnostic information.

For additional information regarding the configuration file, see https://github.com/nlog/NLog/wiki/Configuration-file.

For supported NLog targets, see https://github.com/nlog/NLog/wiki/Targets.

Write Logs

Three public types are associated with the logging framework:

  • ILoggerFactory
  • ILogger
  • LoggerExtensions (extensions methods for ILogger)

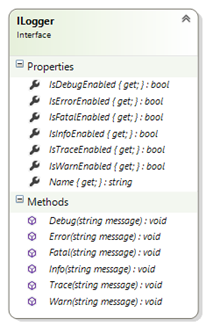

Ilogger interface   IloggerFactory

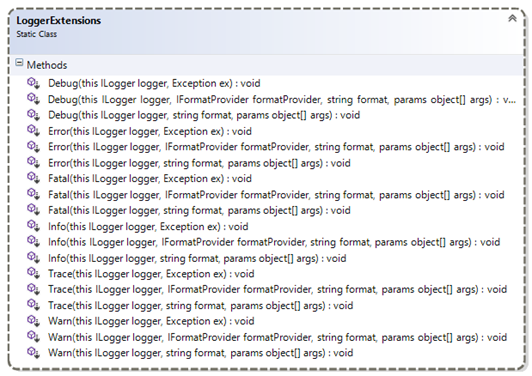

Ilogger extensions

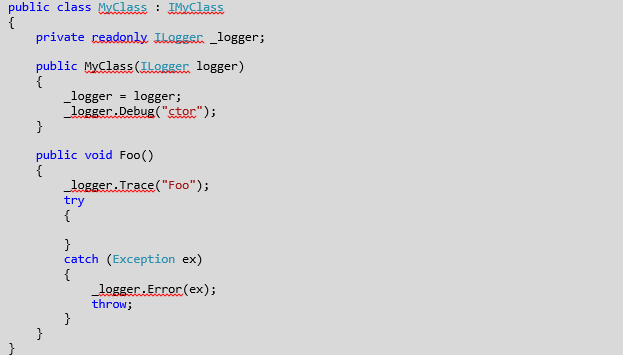

There are two ways to enable logging in your class. The preferred way is to receive an ILogger interface as a constructor dependency. The IoC container ensures that this dependency is wired for you.

Ilogger public class

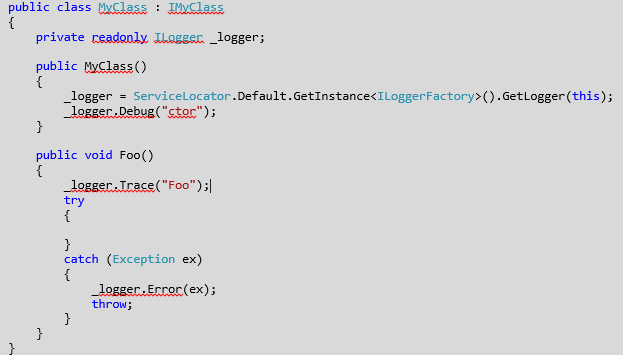

If your class is a legacy class that does not support DI, you can use the ServiceLocator to retrieve an ILoggerFactory to create the logger.

Ilogger debug class

Add Log Messages to Classes

Once you have a logger in a class, it is important to add the relevant LOG messages to it that will help us all in debugging and understanding how this class is behaving.

Log Non-Exception Messages

Trace Messages

Use these messages to trace which lines of source code are being executed; they will log what is going on with the code.

Usage: _log.Trace(“Your message.”)

Debug Messages

Use these messages to output the contents or values of variables or properties during the execution of source code; they will log the important values of objects that may affect how the code will execute.

Usage: _log.Debug(“Your message. variable1={0}.”, variable1)

Info Messages

Use these messages to log information that may be useful to know about the normal operation of the application (such as environment variables, paths, etc.).

Usage: _log.Info(“Your message. variable1={0}.”, variable1)

Warning Messages

Use these messages to log messages that we are not sure are acceptable or to track variable/property values that may be close to being out of the acceptable range.

Usage: _log.Warn(“Your message. variable1={0}.”, variable1)

Error Messages

Use these messages to log any exceptions we have that are not being handled. This is typically used in the CATCH of a TRY/CATCH block.

Usage: See Log Exception Messages.

Fatal Messages

Use these messages to log special conditions that indicate that something went terribly wrong in the execution of the code.

Usage: See Log Exception Messages.

Log Exception Messages

To properly log an exception, you should follow one of the patterns shown below. This will allow you to capture the full exception details and also include (if necessary) any other values that may be important for debugging.

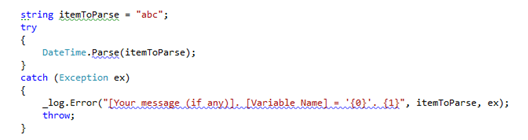

Scenario 1: Log a custom message, a variable value, and an exception

custom exception

Result log message:

[Your message (if any)]. [Variable Name] = 'abc'. System.FormatException: The string was not recognized as a valid DateTime. There is an unknown word starting at index 0. at System.DateTime.Parse(String s) at Cmc.UI.Web.EcoSysW3C.------() in \DEV\DEV\Cmc\UI\Web\Cmc.UI.Web.EcoSysW3C\------.cs:line xx

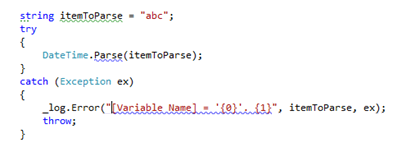

Scenario 2: Log a variable value and an exception

exception variable

Result log message:

[Variable Name] = 'abc'. System.FormatException: The string was not recognized as a valid DateTime. There is an unknown word starting at index 0. at System.DateTime.Parse(String s) at Cmc.UI.Web.EcoSysW3C.------() in \DEV\DEV\Cmc\UI\Web\Cmc.UI.Web.EcoSysW3C\------.cs:line xx

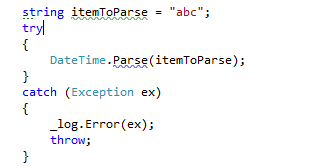

Scenario 3: Log only an exception

exception logging

Result log message:

System.FormatException: The string was not recognized as a valid DateTime. There is an unknown word starting at index 0. at System.DateTime.Parse(String s) at Cmc.UI.Web.EcoSysW3C.------() in \DEV\DEV\Cmc\UI\Web\Cmc.UI.Web.EcoSysW3C\------.cs:line xx

Note: You must always inject the exception to the string message using {0}!

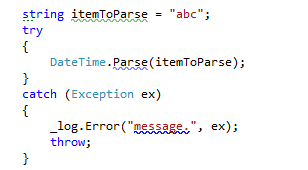

If you log an exception as shown below, it will fail to include the exception in the log message. See result of this message below:

log error parse

Result log message:

message

Read Log Messages to Debug or Troubleshoot

There are three different ways to see your log messages when you wish to debug or troubleshoot an issue:

  1. Access the SQL server and get values from the LOGS table (if they are being logged to the DB)
  2. Access the local log files being saved in (webroot)/LOGS
  3. Use a real-time viewer

You can download the FREE LOG viewer from: http://www.legitlog.com/Products/LegitLogViewer.

Legit logo

Once you install it, you can use it to:

  • Read the log text file, or
  • View messages in real-time as they are added to the logger.

To enable real-time logging, follow these steps:

  1. Select Logs >> Live Capture Log.
  2. Select Start capture global.

You should now start seeing any log messages as they are added into the logger.

For additional information, see the NLog website: http://nlog-project.org.
