Bot Channels Registration

The steps below need to be performed to register a bot with the Azure Bot Service. A bot, registered with Azure, uses channels to facilitate the communication with users.

The registration of bot channels in Azure will be completed by Anthology staff (DevOps Cloud Team).

Add a Bot Channels Registration

  1. Log in to the Azure Portal (Anthology Tenant Azure Directory) and click the Home link.

  2. Select Resource groups. Closed

    Azure Resource Groups

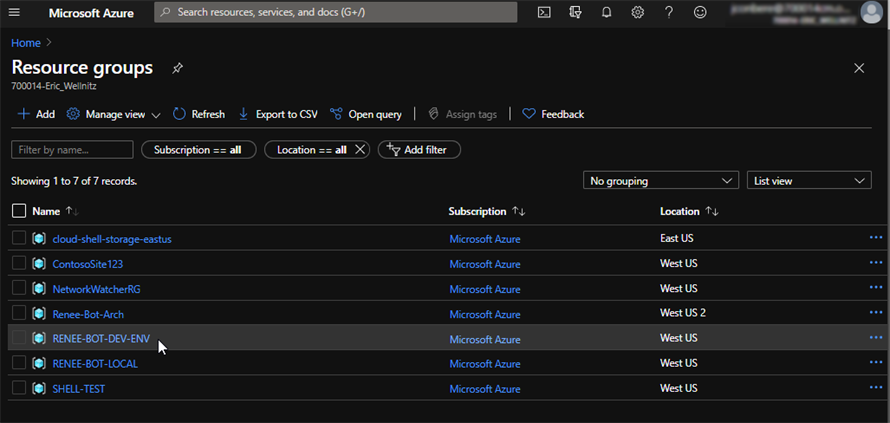

  3. On the Resource groups page, select the resource group for the environment you want to configure. In our example the resource group is RENEE-BOT-DEV-ENV. When configuring the bot for clients, select an appropriate production environment. Closed

    Azure Resource Groups Grid

  4. To add a bot channels registration, click the Add button. Closed

    Add bot channels registration

  5. On the New page, use the Search tool and search for Bot Channels Registration. Closed

    Search Bot Channels Registration

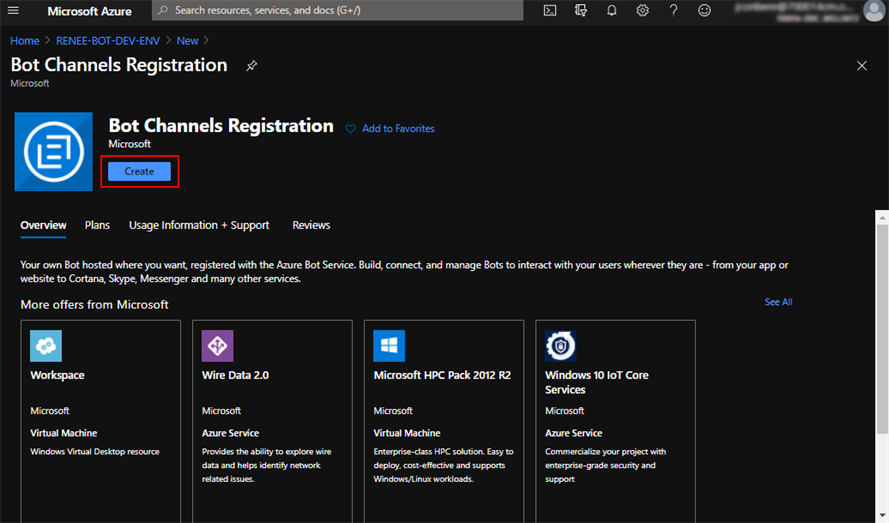

  6. On the Bot Channels Registration page, click the Create button. Closed

    Create Bot Channels Registration

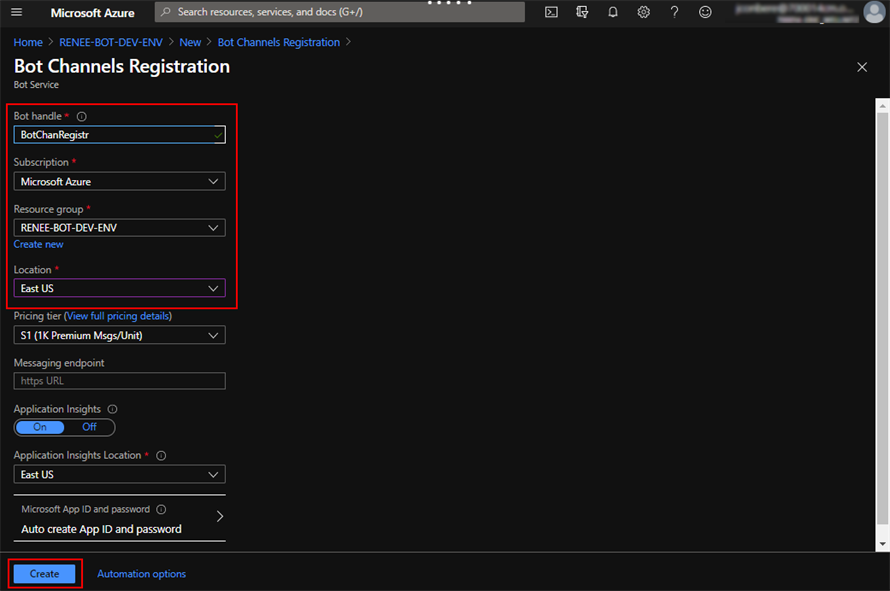

  7. On the Bot Channels Registration details page, specify/select the following values. Closed

    Field Description
    Bot handle Specify a name/handle for the new bot channels registration.

    The naming convention is: <CustomerId>ReneeBotChannel-<env>

    The <env> placeholder will be blank for the production environment.

    Subscription Microsoft Azure
    Resource Group Select your resource group
    Location East US

    Accept the defaults for the remaining fields on this page.

    Bot service

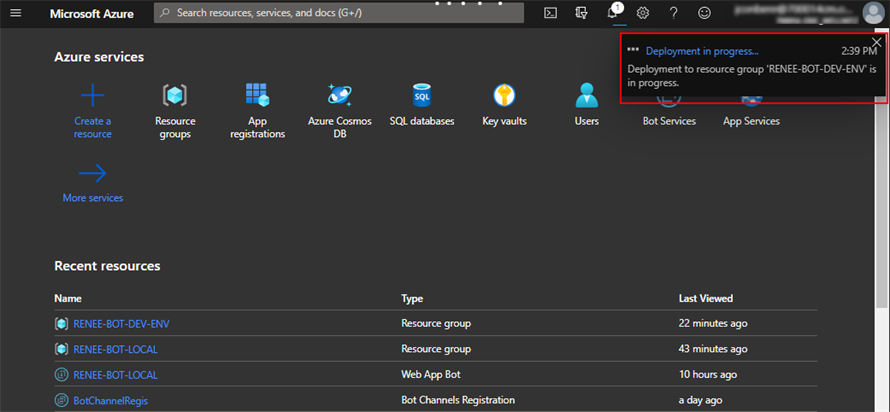

  8. Click the Create button. The process of registering the new bot channels takes a few minutes. You will see a notification when the process is completed. Closed

    Deployment in progress

  9. When the deployment process is completed, click the Go to Resource button. Closed

    Notification

  10. Select Settings under Bot management in the left pane and scroll down in the right-hand pane. Closed

    The Microsoft App ID will be the App ID value in the Internal Administration Portal for the particular tenant.

    Settings

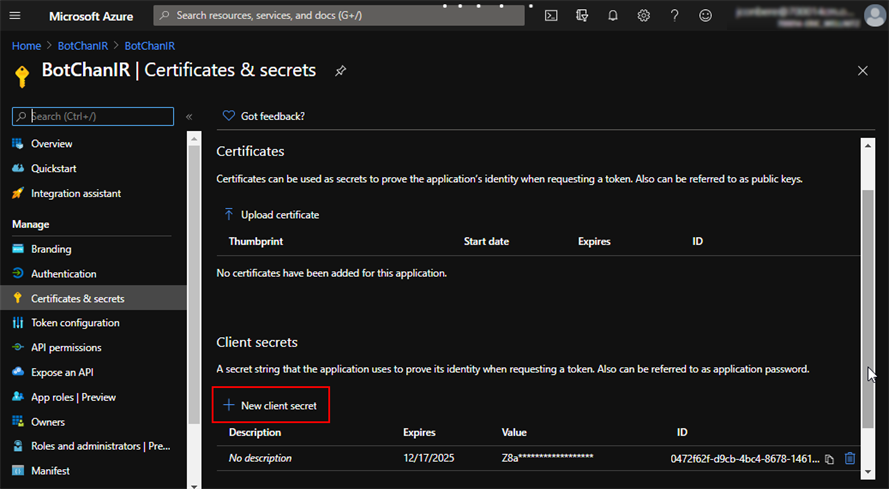

  11. Click the Manage link next to Microsoft App ID to access the Certificates & secrets page and click the New client secret button. Closed

    Certificates and secrets

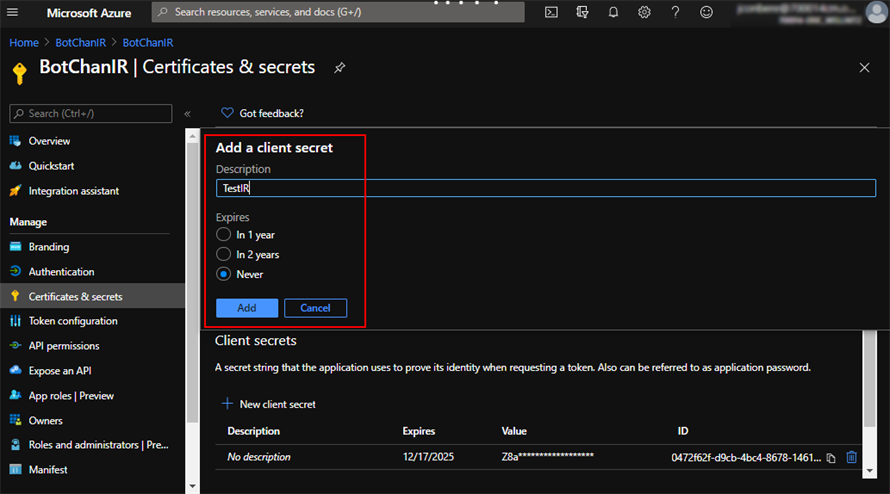

  12. Specify a Description for the new secret, select an Expiration time, and click the Add button. Closed

    Add secret

  13. Once the secret is added, scroll to the Client secrets section and click the Copy to clipboard link on the Value field of the new secret. Closed

    The secret value can only be copied after the secret is first created. Subsequently, the value will be masked and can no longer be copied.

    The client secret obtained on this page will be the App Password value in the Internal Administration Portal for the particular tenant.

    Secret value

Enter the App ID and App Password values obtained in the steps above in the Internal Administration Portal for the particular tenant. See Add Tenant in Internal Administration Portal.

Configure Messaging Endpoints

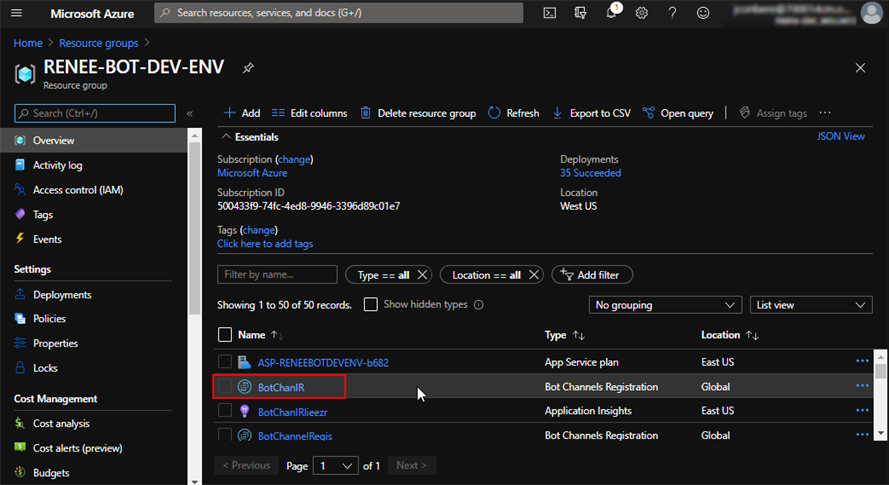

  1. Open your Bot Channels Registration from the Bot Resource Group. Closed

    My Bot Channels

  2. Select Settings under Bot management in the left pane. Closed

    Settings

  3. Construct a messaging endpoint with the following format:

    BotAppServiceUrl + /api/ + TenantID + /messages

    Where TenantId is the value specified in the Tenant ID field in the Internal Administration Portal.

    Example

    https://ReneeBot-qa-910008.campusNexus.cloud/api/11c5f444-ec19-4b6a-912f-772b2bd8171c/messages

    See Retrieve the Bot App Service Url for instructions on locating and copying the BotAppServiceUrl value.

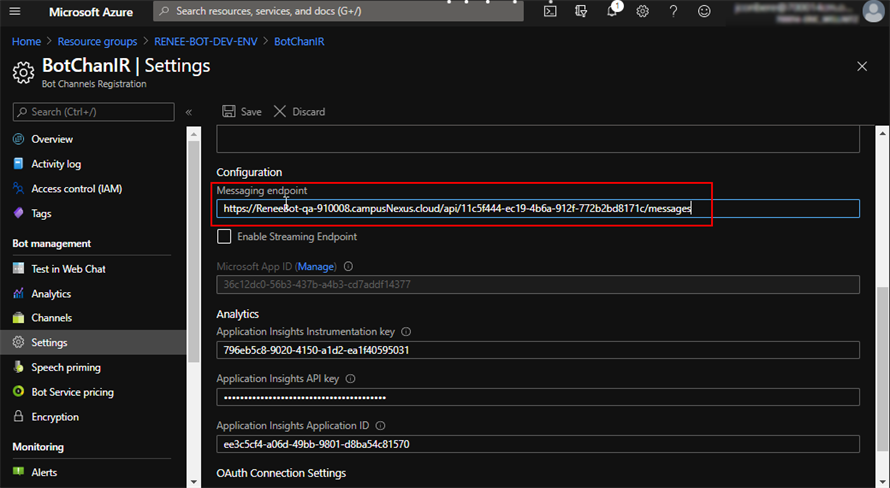

  4. Scroll down to the Configuration area in the left pane of the Settings page and add the constructed messaging endpoint in the Messaging endpoint field. Closed

    Messaging endpoint

  5. Save the configuration.

Create Channels from the Bot Channels Registration

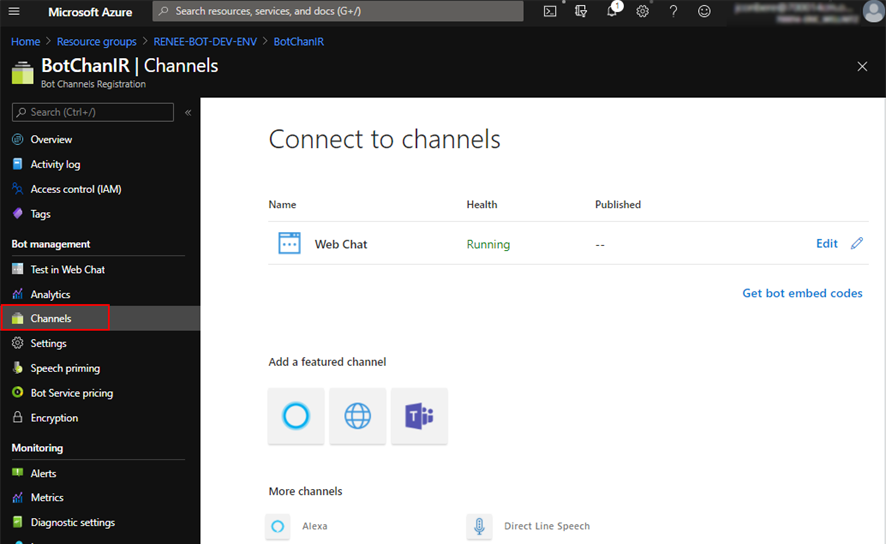

  1. Select Channels under Bot Management in the left pane. Closed

    Channels

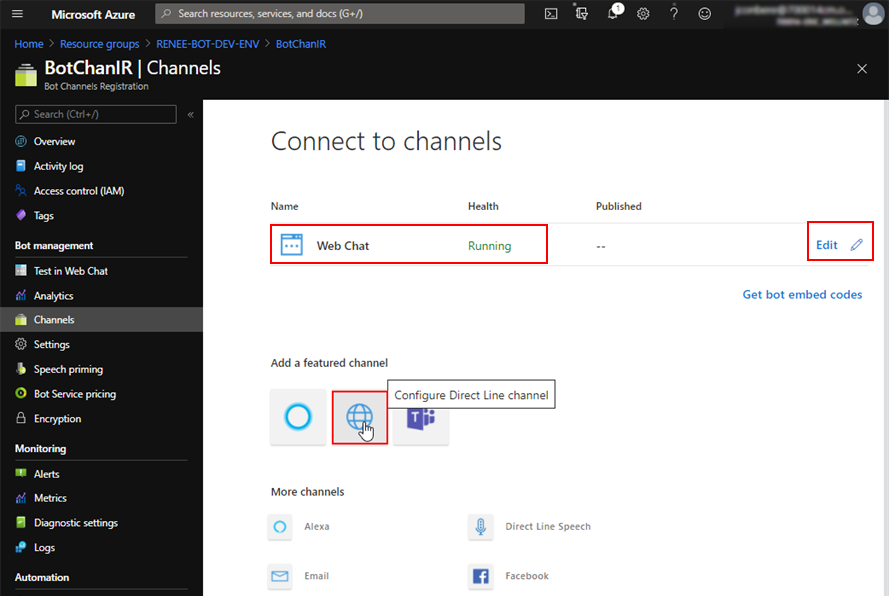

  2. To configure a channel, click the appropriate icon. Direct Line Channel configuration is located under featured channels. Closed

    Configure Direct Line Channel

    The steps of creating a Direct Line channel site, retrieving the connection key and pasting it into the Live Assist Administration Portal are described here: Create Channels and Sites, steps 7-11.

    Other channel types will be supported in future releases of Digital Assistant.

Retrieve the Bot App Service Url

  1. Access the Bot App Service link from the Resource Group. Sort the Type column in ascending order to find your App Service. Closed

    Get App Service Url

  2. Click the Copy to clipboard icon for the Bot App Service URL. Closed

    Copy URL
